Regular Size Model Smoker for R/C Vehicles 12V

Regular Size Model Smoker for R/C Vehicles 12V

$125.00Price

The Regular Size Model Smokers are available with different options to upgrade to a quieter, more reliable and more realistic smoke effect for your 1:6-1:12 Scale Model Train, RC PT-109 or other Boat, Crawler, Rig or other vehicle. Smoke will be Proportional with your motor in Forward and Reverse! The Idle smoke will start once the unit receives around 60% of the rated voltage. A voltage regulator needs to be added if there is a chance of exceeding the 12 Volt rating . The Model will need sufficent air flow into the model, as well as a minimum of 3" of room above the fan in order to operate. Do not overfill, or run the Unit Dry! The unit features metal alloy and brass construction, fitted with a guarded brushless fan for quiet operation, low power consumption of around 2.3 AMPS, and extended run time of over 2 hours on one full 1 OZ fill up of Fluid.



They come in a compact size of approximately 4 1/2” L (11.5 CM), 2-1/4” W (5.7 CM), 2" H (5 CM) and a weight of just over 8 OZ (227 GRAMS) when filled with 1 OZ fluid. Each unit comes standard with a 1/2" O.D. Brass Outlet, directions and a wiring diagram. A sample bottle of fluid is also included for shipments to the Continental United States.



For Trains-Recommend Choosing “Add Chuff Kit” and "Add Piston Steam Kit "The Optional "Chuff Kit" contains 2 Switches and Magnets that create a Chuffing effect when integrated into the Model Smoker. Wire and glue not included. The Optional "Piston Steam Kit" contains 1 Fitting to adapt the Smoke Unit to push smoke to the train pistons, a 6" Length of 1/2" Tubing and 2 of the 6" lengths of the 1/4" Tubing.



Choose from either Quick Splice connectors for solderless connection, or No Quick Splice if you plan to solder the wires to the motor tabs. This is a Custom Engineered product. Please allow 7-10 Business days before it is Shipped.

VOLTAGE
CHUFF KIT

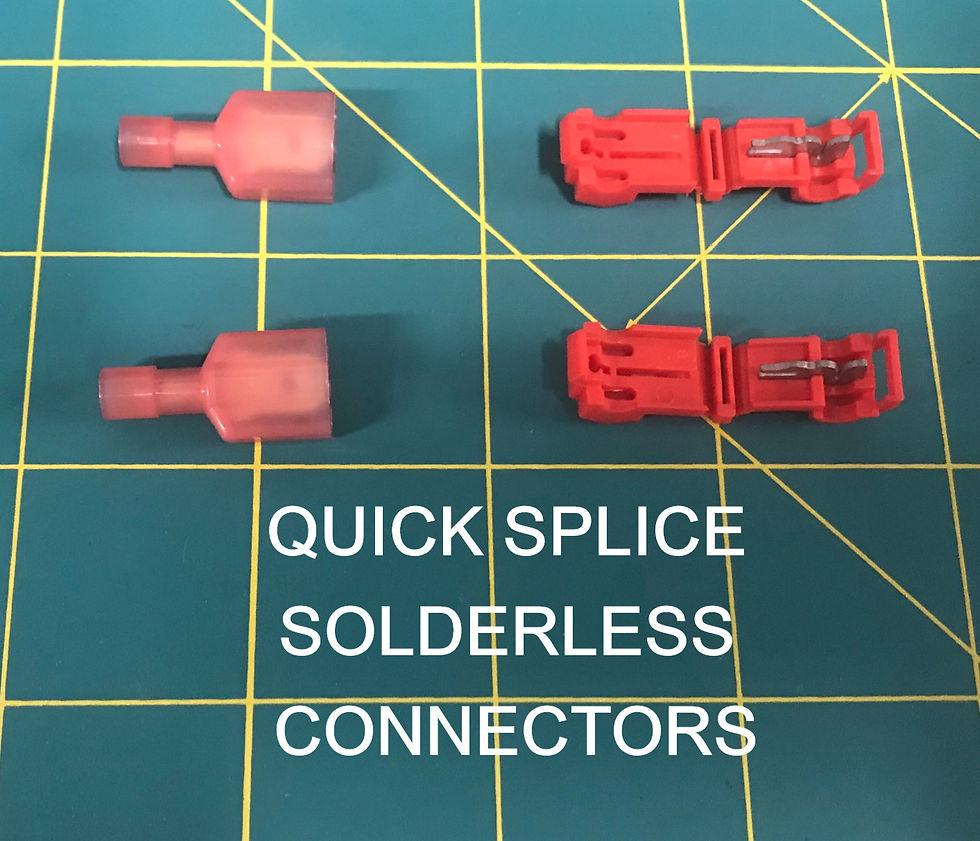

SOLDERLESS QUICK SPLICE CONNECTORS
PISTON STEAM KIT
ADJUSTABLE VOLTAGE REGULATOR
